The EL-C600S is a dry-type copper cable granulator designed for automotive wire harnesses, communication cables, household appliance wires, computer/data cables and miscellaneous fine wires. It uses crushing and air separation rather than water-based separation.
| Parameter | Specification |
|---|---|
| Model | EL-C600S |
| Equipment Type | Dry Type Copper Cable Granulator |
| Processing Capacity | 300–400 kg/h |
| Recommended Conductor Diameter | ≥0.20 mm |
| Separation Performance | ≥98% |
| Fine Separation Performance | 98–99% |
| Electrostatic Separation | >99% |
| Magnetic Separation Efficiency | ≥99.8% |
| Dust Removal Efficiency | ≥99% |
| Crushing System | Two-Stage Crushing |
| Crusher Motor | 30 kW |
| Pre-Shredder Motor | 22 kW |
| Screen Mesh | 2.5 / 3 / 4 / 5 mm |
| Knife Material | High-Strength Wear-Resistant Alloy Steel |
| Knife Hardness | ≥HRC 60 |
| Knife Service Life | ≥400 h |
| Knife Replacement Time | ≤60 min |
| Cooling System | Circulating Water Cooling, ≥3 HP |
| Magnetic Separator | NdFeB Magnetic Roller |
| Separation System | Magnetic + Gravity + Electrostatic Separation |
| Electrostatic Separator Power | 5 kW |
| Dust Collector | Pulse Baghouse |
| Working Voltage | AC 380 V / 50 Hz |
| Power Supply | Three-Phase, Five-Wire |
| Drive Motors | AC Variable-Frequency Motors |
| Motor Brand | / |
The twin-roller crusher provides high torque and stable material processing while helping reduce operating noise.
The alternating blade configuration is designed to improve processing efficiency and rotor stability.
The air separation system is specified to achieve a sorting purity of over 99%.
The material return system sends semi-finished material back for secondary pulverization, helping complete the separation process.
The integrated bag-house filtration system is designed to prevent dust leakage, with a specified dust removal efficiency of over 99%.
How Does the EL-C600S Work?

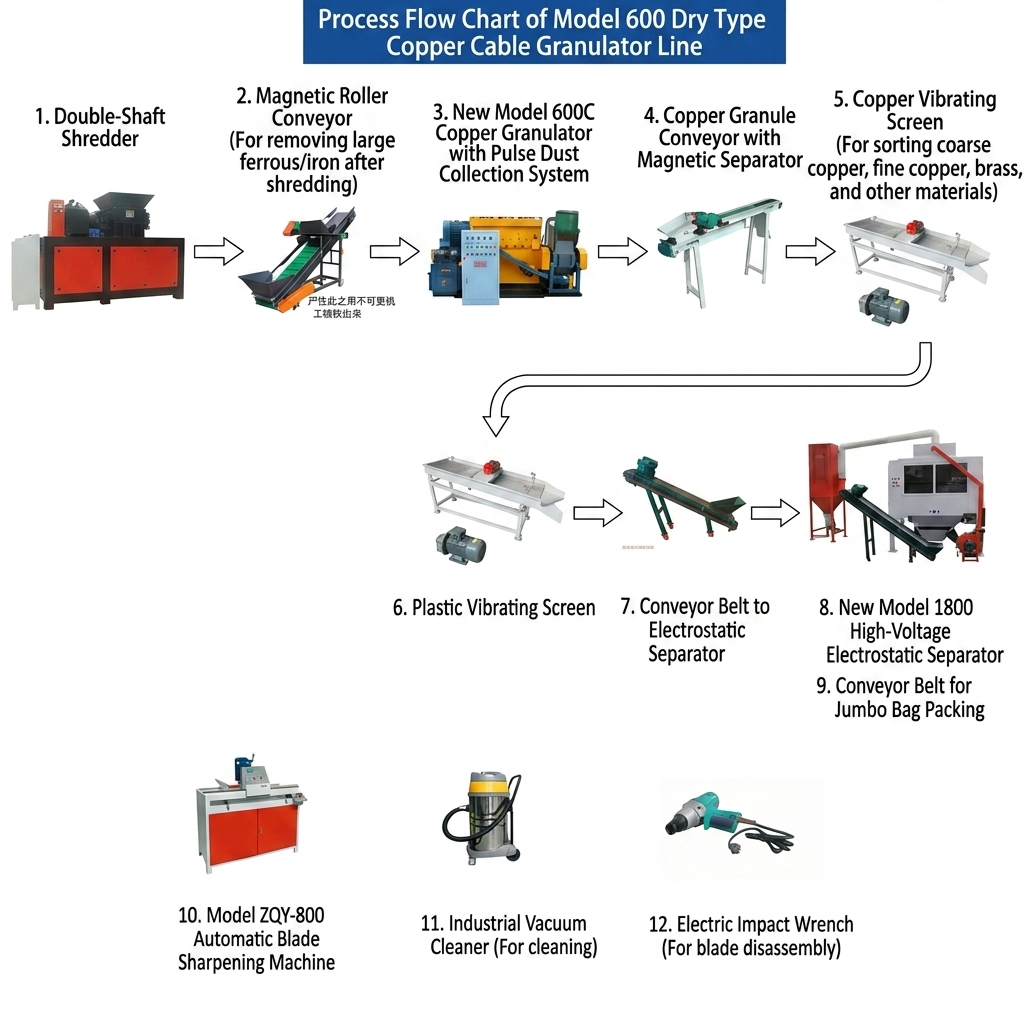

Copper Cable Recycling Process
Waste wires and cables are fed into the recycling system.
↓
The low-speed, high-torque crushing system reduces the incoming cables into smaller pieces.
↓
The alternating blade rotor further processes the material into a suitable particle size for separation.
↓
Copper and non-metal materials are separated through high-precision air separation.
↓
Semi-finished material can be returned for secondary pulverization to improve separation completeness.
↓
Separated Copper + Recovered Non-Metal Material
Traditional wire stripping machines work well with certain types of cables, but they are not suitable for every scrap wire.
The EL-C600S is designed for mixed, fine and irregular wires, including automotive wire harnesses, communication cables and miscellaneous wires.
Instead of manually stripping individual cables, the dry granulation process mechanically reduces the material and separates copper from non-metal components.
Mixed wires
Fine wires
Automotive harnesses
Communication cables
Miscellaneous scrap cables
The EL-C600S is designed to help recycling companies transform mixed scrap wires and cables into separated recyclable materials.
Separate copper from insulation and other non-metal materials.
Automated operation reduces dependence on manual sorting and stripping.
Suitable for wire types that are difficult to process using conventional stripping machines.
The integrated modular structure provides a compact equipment layout.
Automated feeding and control help maintain stable operation.
A dry type copper cable granulator is a recycling machine that processes scrap wires and cables through mechanical crushing and dry separation to recover copper from plastic and other non-metal materials.
The EL-C600S is designed for automotive wire harnesses, household appliance wires, communication cables, computer/data cables and miscellaneous mixed wires.
The EL-C600S is designed as a dry-type recycling system, using mechanical processing and air separation rather than water-based separation.
According to the supplied product specification, the air separation system achieves a sorting purity of over 99%.
Yes. The EL-C600S is equipped with a bag-type dust collection system. The supplied specification states a dust removal efficiency of over 99%.
Yes. Automotive wire harnesses are specifically listed among the intended application materials.
Yes. Communication cables are included in the specified application range.
The product specification describes the EL-C600S as having an intelligent automatic control system with automated feeding and operation.
The product is specifically described as suitable for miscellaneous civilian wires, including fine "hair" wires, that are unsuitable for traditional wire stripping machines.
A wire stripping machine mechanically removes insulation from suitable individual wires, while a copper wire granulator typically crushes cable material and separates copper from non-metal material. A granulator can therefore be suitable for mixed or irregular wire materials that are difficult to strip individually.
| EL-C600S | Traditional Wire Stripping | |
|---|---|---|
| Mixed wires | ✓ | Limited |
| Fine wires | ✓ | Limited |
| Automotive harnesses | ✓ | Depends on cable type |
| Communication cables | ✓ | Depends on cable type |
| Automatic processing | ✓ | Usually more manual |
| Dry separation | ✓ | N/A |
| Copper / plastic separation | ✓ | ✓ |
| Closed-loop recycling | ✓ | — |
| Integrated dust collection | ✓ | Depends on equipment |
Tell us what type of wire or cable you want to process.
We can evaluate the material and recommend a suitable copper cable recycling solution based on:
Cable type
Wire diameter
Material composition
Required processing capacity
Copper recovery requirements
Installation conditions
Get Technical Advice
Request a Quotation
Send Cable Sample Photos
