How it works
EC-C1000A cable recycling process
A clear, answer-first explanation for buyers evaluating a dry copper granulator.
01

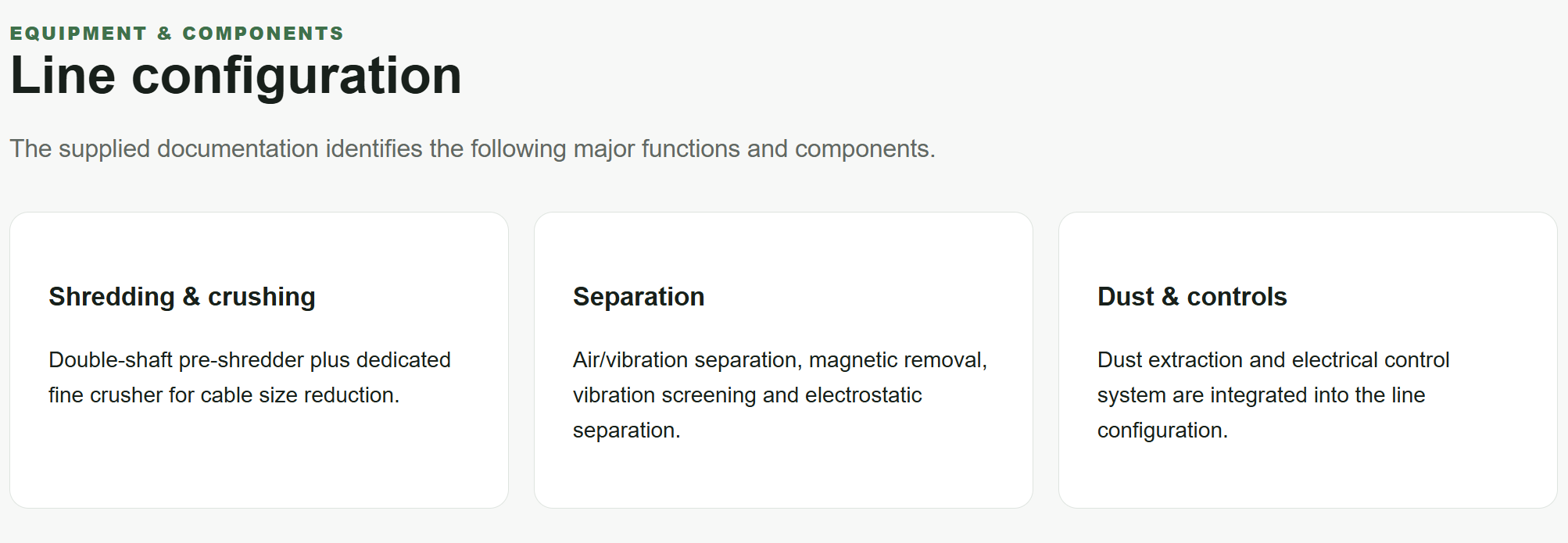

Feed mixed scrap cable into the line.
02
The 60 kW double-shaft shredder reduces different cable lengths into smaller pieces.
03
The 75 kW dedicated cable crusher prepares material for separation.
04
Copper and plastic are separated by air pressure and vibration.
05
Two vibration screens refine the separation and return copper-bearing fines for re-separation.
06
The 2200-type electrostatic unit further separates remaining copper particles from plastic.
07
The configuration includes dust extraction; the source specification identifies pulse dust collection in the main machine.

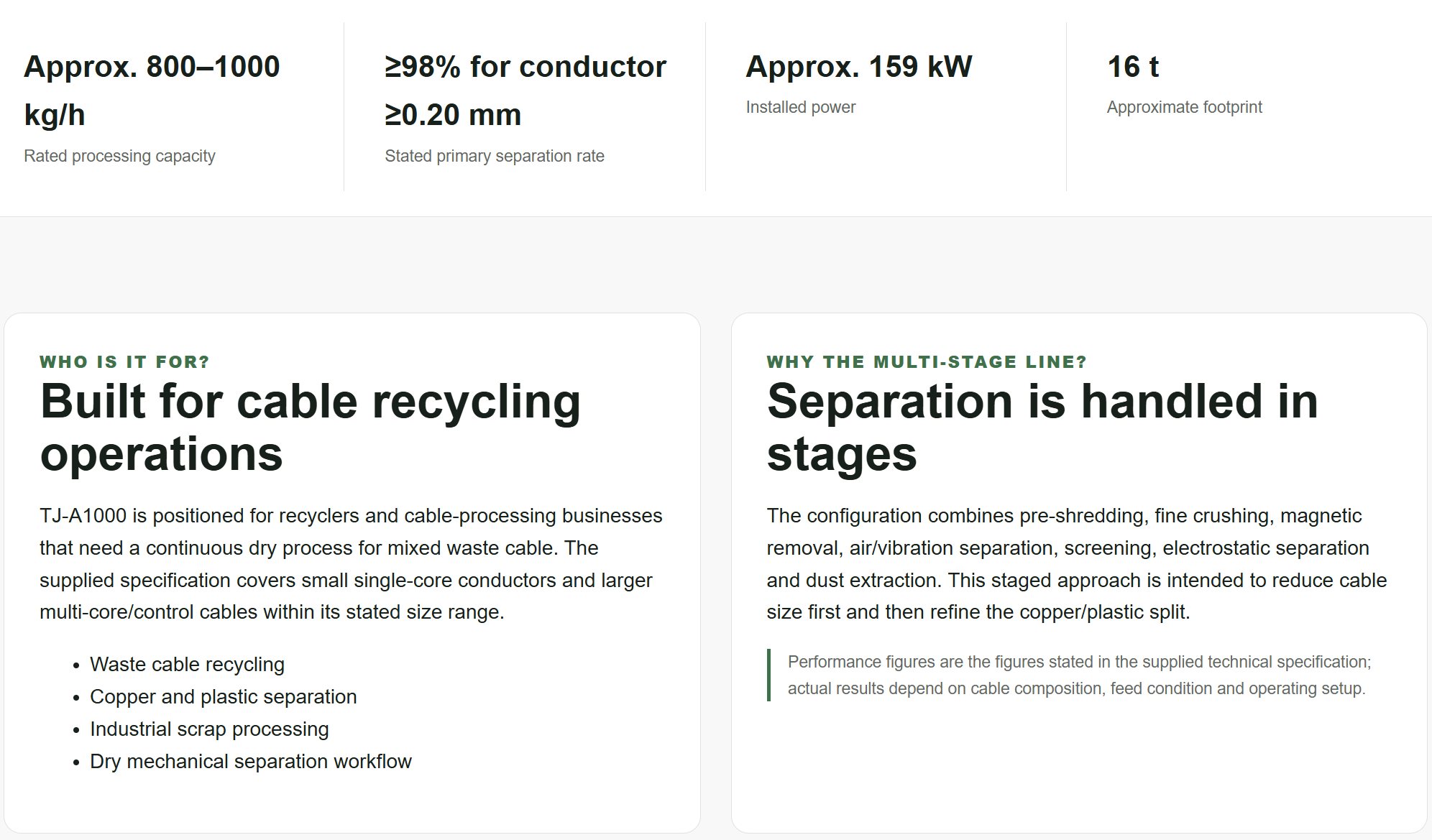

Technical specifications
Key technical data from the supplied equipment specification and quotation.
| Model | TJ-A1000 |
|---|---|
| Application | Single-core cables ≤5 mm; multi-core/control cables ≤60 mm |
| Rated capacity | Approx. 800–1000 kg/h |
| Main crushing motor | 75 kW |
| Pre-shredder motor | 60 kW |
| Conductor diameter for stated separation rate | ≥0.20 mm |
| Stated separation rate | ≥98% for conductor ≥0.20 mm; vibration screening stated at 98–99% |
| Electrostatic separation | ≥99.8% (as specified) |
| Screen options | 2.5 / 3 / 4 / 5 mm |
| Electrostatic unit | 2200 upgraded type; 8 kW |
| Total installed power | Approx. 159 kW |
| Overall dimensions | Approx. 14 × 8 × 2.35 m |
| Approx. weight | 16 t |
| Warranty | 1 year for complete machine |
Confirm the final electrical bill of materials and total connected load against the final quotation before purchase.
Product gallery
Images below are taken from the supplied technical documents and can be replaced with final production photography for the live website.
Please contact us for quotation listed.
FAQ
What cable can the EC-C1000A process?
The supplied specification states that the machine is intended for waste single-core cable up to 5 mm and multi-core/control cable up to 60 mm.
What is the capacity of the EC-C1000A?
The specification gives an approximate processing capacity of 800–1000 kg/h.
What separation performance is specified?
For conductors with a diameter of 0.20 mm or more, the specification states a separation rate of more than 98%. The vibration screening stage is stated at 98–99%, and the electrostatic stage at more than 99.8%.
Does the EC-C1000A include dust collection?
Yes. The supplied specification describes the 1000-type machine as including separation-bed dust extraction and pulse dust collection.
How large is the complete EC-C1000A line?
The quotation section specifies approximately 14 × 8 × 2.35 m and approximately 16 tonnes.
